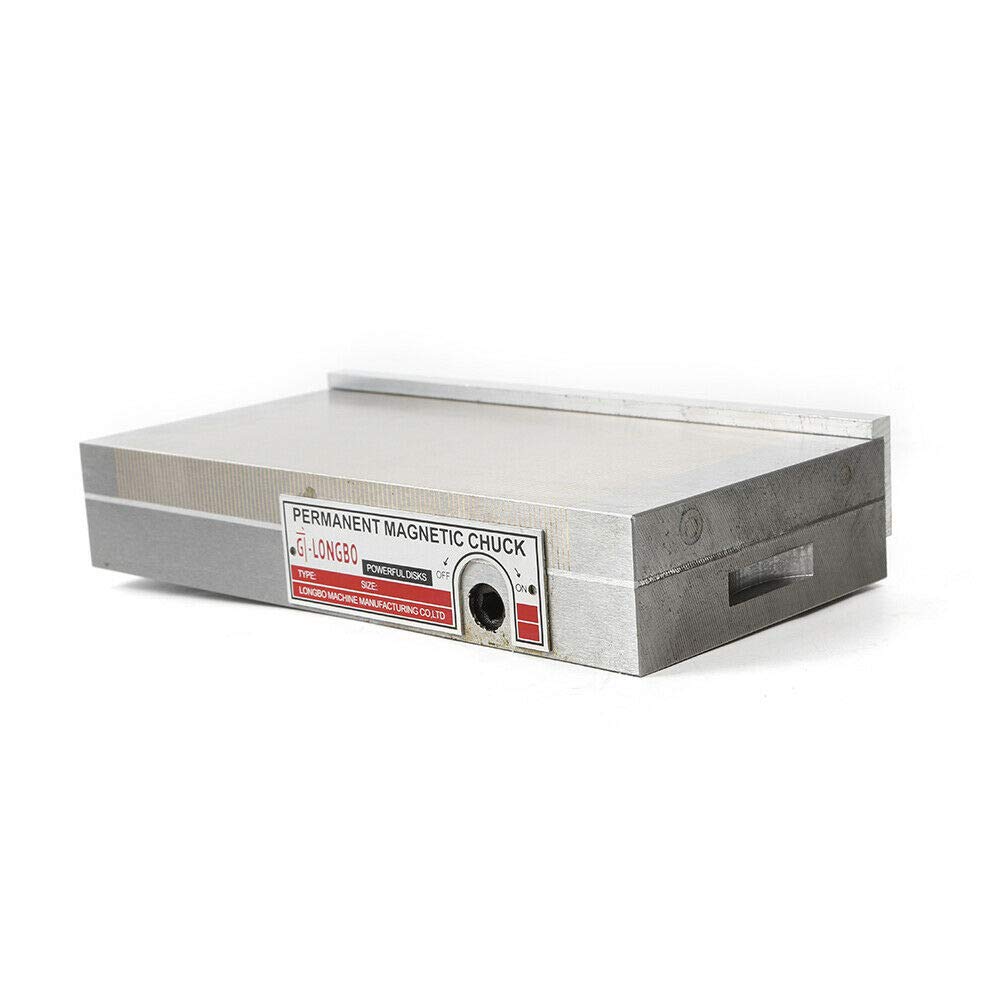

Fine Pole Permanent Rectangular Magnetic Chuck with Handle - Uniform Magnetic Force for Grinding, EDM, Line Cutting & Bench Drilling | Ideal for Metalworking, Machining & Precision Tool Holding
Free shipping on all orders over $50
7-15 days international
11 people viewing this product right now!
30-day free returns
Secure checkout
94234385
Description
DescriptionSpecifications:Model: 125 * 250mm(5”x10”)Chuck height: 45mmPole pitch: 1.5+0.5mm（2mm）Copper strip length: 210mmCopper strip height: 20mmItem Weight approx: 12.5kgFeatures: Applicable to grinding machines, EDM EDM, line cutting, tapping machines, bench drill and other processing. Magnetic pole gap fine, uniform magnetic force, small workpiece processing, the effect is particularly evident. Internal special design, can extend the service life. The main structure is stable, high precision. With industrial pure iron test, the vertical tension up to 100-120N/cm2. Tungsten steel, hard alloy steel and other magnetic small workpieces are not suitable for magnetic sucker.Packages: 1 x Magnetic Chuck
Features
Better Magnetic Force -- Magnetic pole gap fine, uniform magnetic force, small workpiece processing, the effect is particularly evident.
High Precision -- Internal special design, can extend the service life. The main structure is stable, high precision.
Vertical Tension -- With industrial pure iron test, the vertical tension up to 100-120N/cm2.
Specifications - --Model 125 * 250mm(5”x10”);--Chuck height 45mm;--Pole pitch 1.5+0.5mm（2mm）;--Copper strip length 210mm;--Copper strip height 20mm; Item Weight approx 12.5kg
Wide Application -- Applicable to grinding machines, EDM EDM, line cutting, tapping machines, bench drill and other processing. Tungsten steel, hard alloy steel and other magnetic small workpieces are not suitable for magnetic sucker.
